9-5/8" Dewatering Sand Control V Wire Screen Tube, 244.5mm Johnson
Wedge Wire Screen Pipe
stainless steel vee sharped wire / wrap wire, johnson screeen,
water well screen / rod based wire wrapped screen, wedge wire
screen, reverse wedge wire screen, stainess steel strainer pipe, v
wire slot tube, perfect roundness well screen pipe, dewatering well
screen, dewatering screen panel, wedge wire grating, v wire flat
panel, screen nozzle, water and gas strainer nozzle, stainless
steel filter nozzle, wedge wire support grids, sieve bend plate, v
wire screens, ARC screen, filter bottom nozzle, stainless steel
lateral screens, wedge wire filter candles, Rotary drum screens,
strainer cylinder, sand control well screen, oil well screen, rod
basedc ontinuous slot screens, header and hub laterals & hub radial
laterals etc.
Introduction of Dewatering Sand Control Johnson V Wire Screen Pipe,
Wedge Wire Screen Tube:
Dewatering Sand Control Johnson V Wire Screen, also known as the
water well screen, wire wrapped screen, wound screen, wedge wire
screen, is widely used in oil, gas, water well sand control
industry, especially in the water well industry prominent position,
widely used in water resources filter screen pipe. Stainless steel
dewatering sand control Johnson wire screen using full welding
production process, the application of special trapezoidal wire
winding in a circumferential arrangement of a group of supporting
wire welding from.
Dewatering Sand Control Johnson Wire Screen Performance
Characteristics:
The application of trapezoidal wire, so that the screen tube gap
between the formation of V shaped opening.
The trapezoidal wire continuous winding forms continuous
high-density uniform gaps on the supporting wires arranged in a
circular manner.
The winding wire and all supporting wire are connected by electric
welding, durable, long working life cycle.
According to the actual needs of the design of support wire
longitudinal arrangement and the continuation of the screen gap
form, the stainless steel screen high compressive performance
Dewatering Sand Control Johnson Wire Screen Information:
Name: Johnson screen, Water wire screen, Water well screen, Wire warp
screen,Wedge wire screen, Screen tube, Slotted tube, Wound screen, Continuous slot screen
filter, Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen. |
Material: Stainless steel 304,316L,Non-magnetic Stainless steel, Low carbon galvanized,
Duplex steel etc. |
| Diameter: From 29-1300mm (Normal diameter is in the below table) |
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm,
Pls refer to below table) |
| Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container) |
| Wrap wire: 2.2x3.0mm, 2.3x3.5mm, 2.5x4.0mm, 3x4.6mm, 3x5mm, 3x6mm,
3.3x6.5mm,etc. |
| Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire. |
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. |
Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,
Food Processors & Beverage Screens,Environmental
protection,Refining & Petrochemical,Architecture & Construction
etc. |
Package of the water well steel slotted screen pipe:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
Advantages of Wedge Wire Screen Pipe:
Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
Use:
water well
Juice
Beer
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Groundwater
Pump Filter
Motor Filter
Dewatering
Pharmaceutical
Waste water treatment
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can
produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such
as flanges, weld rings, or threads, so that the pipes can be
connected to meet
---------------------------------------------------------------------------------------------------------------
Anping XinLu wire mesh products co.,ltd, it is a manufacturer and
exporter of wedge wire screen products.
-----------------------------------------------------------------------------------------------------------------------------------------------
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: To quote,what’s information needed?
A: Material, slot (mesh size), diameter/ width, length, end type /
frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it
based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to
pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q: How to confirm the quality about your products?
A: During production, a few samples can be delivered to you for
quality confirmation. but the customers need to pay the cost of
freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices,
timely delivery, considerate service, etc.

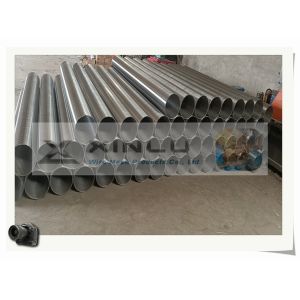

Dewatering Sand Control V Wire Screen Production Process and Pictures:
